Coil Physical Properties Calculator

Enter wire diameter, number of turns, bobbin length, bobbin diameter then click compute.

Use wire gauge chart to determine wire diameter. Production Solution If we can't do it, it can't be done!

AWG Copper Wire
Select Units	Inch	metric

Coil Parameters Calculator
Wire Diameter	(in or mm)
Number of Turns	(turns)
Bobbin Length	(in or mm)
Bobbin Diameter	(in or mm) (D)
Permeability of Core (Optional, for Force Calc)	(4πx10ˉ⁷)
Rated Current (Optional, for Force Calc)	(I)
Gap Distance between Solenoid and Metal (Optional, for Force Calc)	(in or mm) (G)
Results

Turns per Layer	(Turns per Layer)
Number of Layers	(Layers)
Coil Diameter	(in or mm)
Cross Section Area	(in² or mm²)
Total Length of Wire	(ft or M)
Total weight of wire	(Lb or Kg)
Resistance/(ft or M)	(Ohm/ft or M)
Resistance	(ohms)
Inductance	(uH)
Voltage at Rated Current	(V)
Power at Rated Current	(W)
Electromagnetic Force	(N)(Lbs)
Cross Section Area for Force Calc	(in² or mm²) (A)

Wire Gauge Chart
Awg	Dia Inch	Dia mm	Resistance Ohms/M Copper
4/0=0000	0.460	11.7	0.000161
3/0=000	0.410	10.4	0.000203
2/0=00	0.365	9.26	0.000256
1/0=0	0.325	8.25	0.000323
1	0.289	7.35	0.000407
2	0.258	6.54	0.000513
3	0.229	5.83	0.000647
4	.204	5.19	0.000815
5	0.182	4.62	0.00103
6	0.162	4.11	0.00130
7	0.144	3.66	0.00163
8	0.128	3.26	0.00206
9	0.114	2.91	0.00260
10	0.102	2.59	0.00328
11	0.0907	2.30	0.00413
12	0.0808	2.05	0.00521
13	0.0720	1.83	0.00657
14	0.0641	1.63	0.00829
15	0.0571	1.45	0.0104
16	0.0508	1.29	0.0132
17	0.0453	1.15	0.0166
18	0.0403	1.02	0.0210
19	0.0359	0.912	0.0264
20	0.0320	0.812	0.0333
21	0.0285	0.723	0.0420
22	0.0253	0.644	0.0530
23	0.0226	0.573	0.0668
24	0.0201	0.511	0.0842
25	0.0179	0.455	0.106
26	0.0159	0.405	0.134
27	0.0142	0.361	0.169
28	0.0126	0.321	0.213
29	0.0113	0.286	0.268
30	0.0100	0.255	0.339
31	0.00893	0.227	0.427
32	0.00795	0.202	0.538
33	.00708	0.180	0.679
34	0.00631	0.160	0.856
35	0.00562	0.143	1.08
36	0.00500	0.127	1.36
37	0.00445	0.113	1.72
38	0.00397	0.101	2.16
39	0.00353	0.0897	2.73
40	0.00314	0.0799	3.44
41	0.00280	0.07112	4.34
42	0.00249	0.0633	5.47
43	0.00222	0.0564	6.90
44	0.00198	0.0502	8.70
45	0.00176	0.0447	10.98

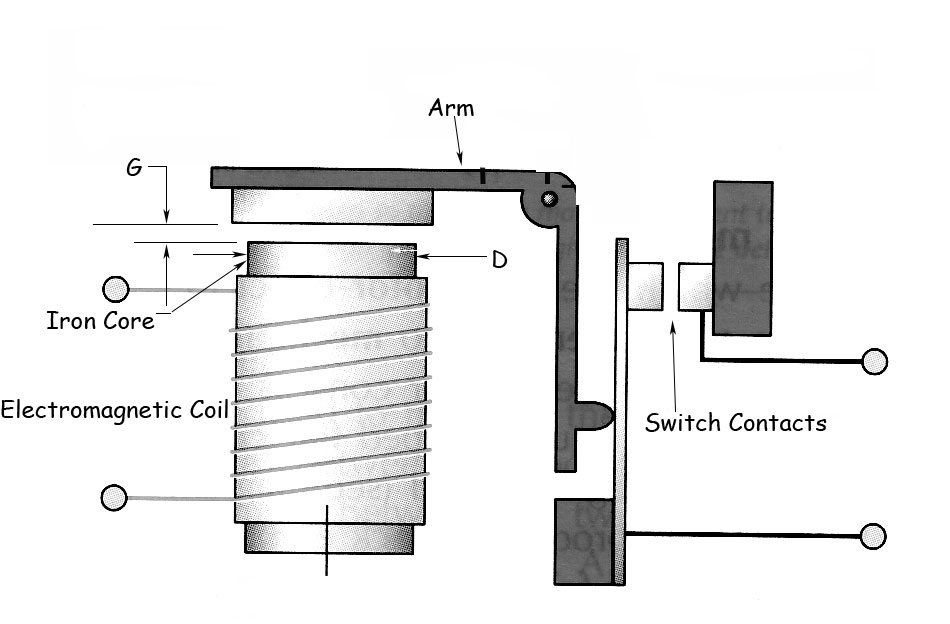

For force calculation using example below: Enter "Number of Turns", "Bobbin Length" can be anything except 0, enter "Bobbin Diameter (D)" this is the iron core diameter, enter "Rated Current (I)", enter "Gap Distance (G), then click calculate. This will give you the Electromagnetic Force pulling the Arm to the Iron Core of the coil. The equation used is: F = (N x I)^2 x K x A / (2 x G^2) N = the number of turns in the solenoid I = the current, in amperes (I) A = the cross-sectional area of the magnet in meters squared G = the distance or gap, in meters, between the coil and the piece of metal K = 4π x 10^-7 tesla meter per ampere (Tm/A). This is a fundamental constant of nature and is used as the baseline for permeability in many calculations related to electromagnetism.coil winder coil winding
